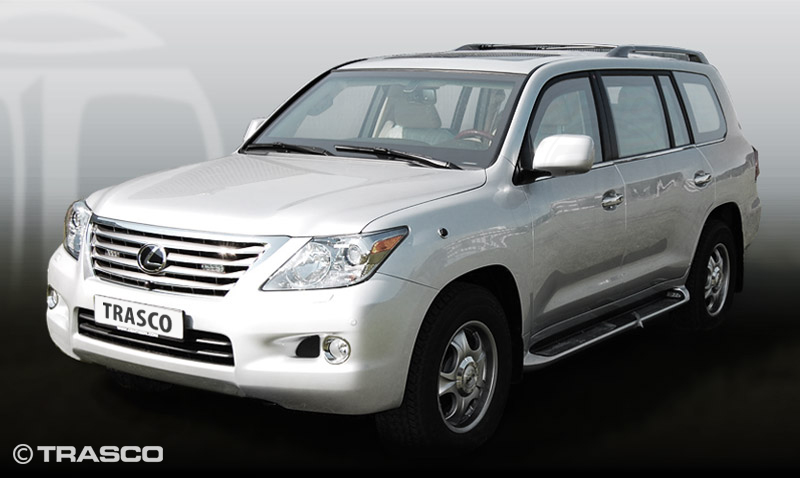

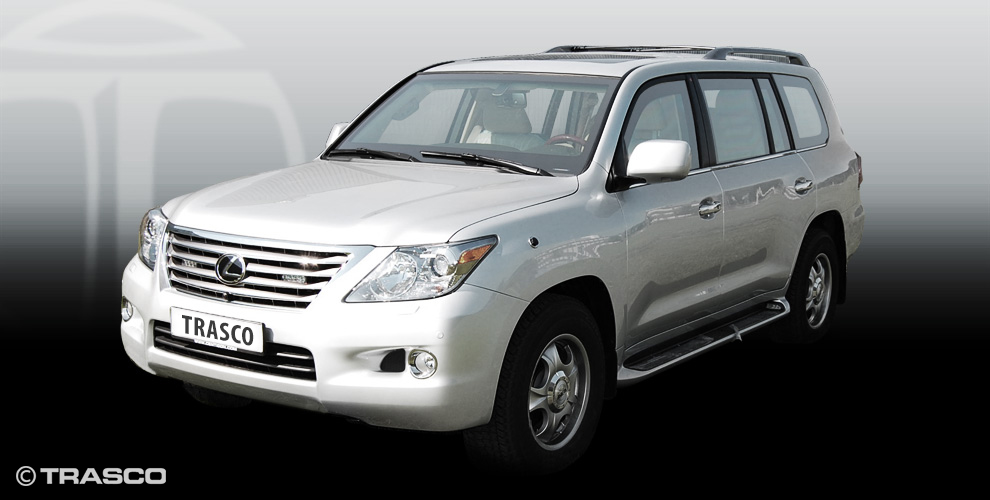

LEXUS LX 570 Extended Wheelbase

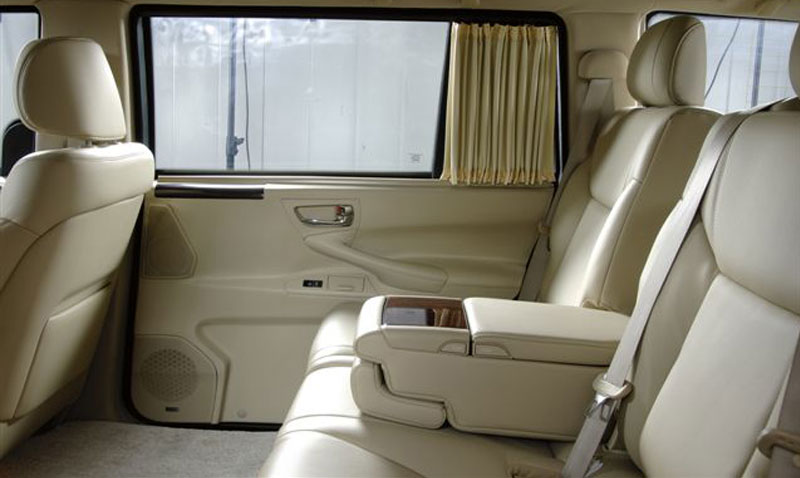

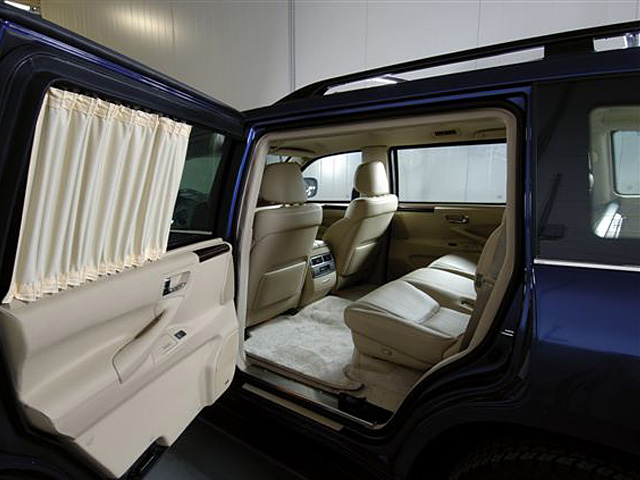

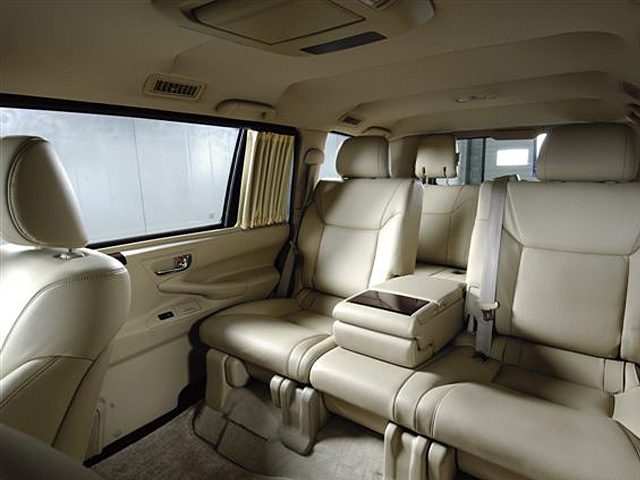

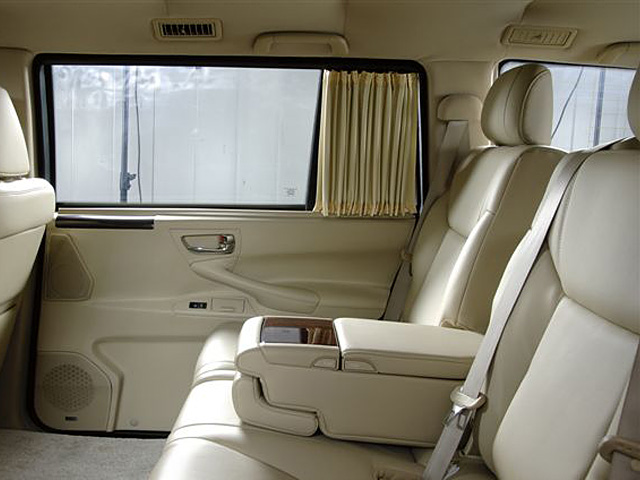

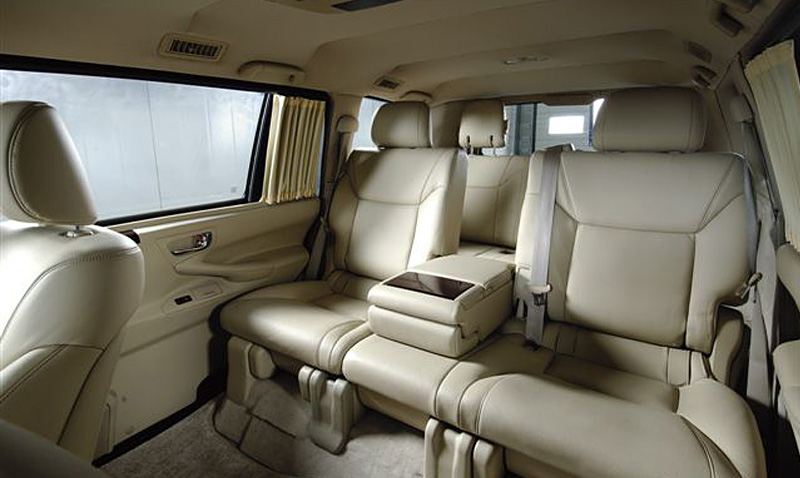

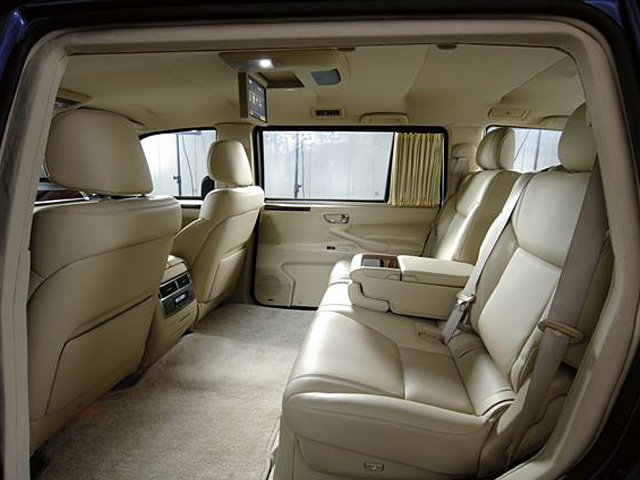

The Lexus LX 570 has been developed by TRASCO with a 30cm extended wheelbase and is available in protection level B6 up to Stanag level II. The extended wheelbase guarantees additional space in the rear of the LX 570 and

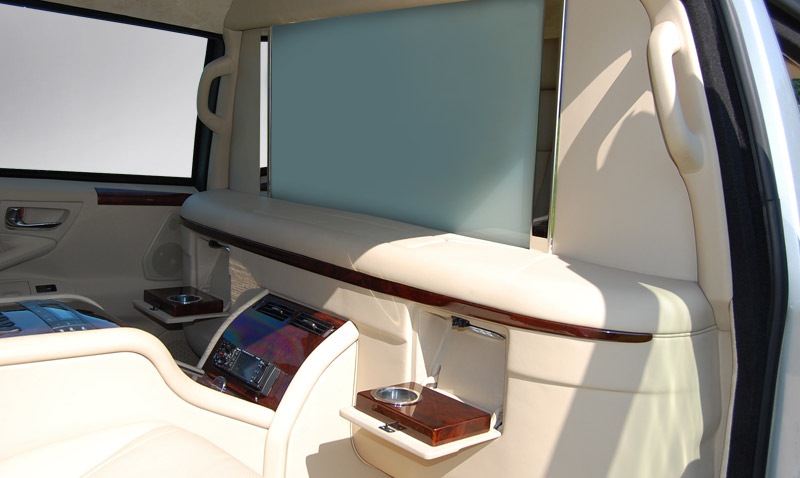

more over provides the opportunity to integrate a partition wall between the front and rear passangers.

Armoring cage with A, B and C pillars and overlaps integrated in passenger cell

Special quality laminated safety glass produced by European glass manufacturers

1 or 2 armored batteries

Self-sealing fuel tank

Underbody protection panel against 2x DM51 grenades (optional)

Heavy duty wheels which are designed for a payload of 1600 kg

Reinforced door arresters and door hinges, directly mounted to the armoring cage

Gasspring, new doorstops

Armored engine control unit

Armoring

Threat	Testlevel according to VPAM APR 2006	Classification by PM 2007 (PM) BRV 2009 (VR)	Stanag 4569 AEP 55 (level)	Comparable to* DIN EN 1063 (BR), DIN EN 1522/23 (FB), BRV 1999 (VR)	Type of Weapon	Calibre	Type of bullet	Testcondition
Threat	Testlevel according to VPAM APR 2006	Classification by PM 2007 (PM) BRV 2009 (VR)	Stanag 4569 AEP 55 (level)		Type of Weapon	Calibre	Type of bullet	Standoff (m)	Standard Hit Spacing
	7	PM 7 VR 7	Level 1	BR 5 FB 5 VR 5	M16A2/Famas-G2	5.56 x 45mm	FJ(2)/PB/SCP(1)	10 +/- 0.5	3 shots on the vertices of a triangle @ 120 +/- 10mm
	7	PM 7 VR 7		BR 6 FB 6 VR 6	M80 Ball (M60/M14/FAL-FN)	7.62 x 51mm	FJ(1)/PB/SC
				( B6+ not classified)	M16A1/Famas-G1 (M193)	5.56 x 45mm	FJ(2)/PB/SC
	8	PM 8 VR 8	Level 2		BZ-API (AK-47)	7.62 x 39mm	FJ(1)/PB/HCI(1)	10 +/- 0.5	3 shots on the vertices of a triangle @ 120 +/- 10mm
	8	PM 8 VR 8	Level 2		20mm FSP	20mm	Fragment	10 +/- 0.5	1 shot in center of panel
	9	PM 9 VR 9		BR 7 FB 7 VR 7	M61-AP (M60/M14/FAL-FN)	7.62 x 51mm	FJ(2)/PB/HC(1)	10 +/- 0.5	3 shots on the vertices of a triangle @ 120 +/- 10mm

Technical facts

	Lexus LX570 + 30cm
Type	URJ-201
Fuel	Petrol
Cylinders	8
Cubic capacity in ccm	5,7
Torque Nm/rpm (*)	544 / 3600
Power HP/rpm (*)	378 / 5600
Seats	4
Tank capacity + subtank (l)	93 + 45
Left / right steering	Yes / Yes
manual / automatic transmission	No / Yes
Armoring level	B6
Empty weight (kg)	4.710
Gross vehicle weight (kg)	5.050

Armoring level
Empty weight (kg)
Gross vehicle weight (kg)

Armoring level
Empty weight (kg)
Gross vehicle weight (kg)

Suspension

LEXUS LX 570

The TRASCO LX570 is equiped with heavy duty shock absorbers, springs and swaybars, which keep the automatic hight control working. Reinforced body mounts are placed between body and chassis for more driving stability.

Brakes

Special manufactured heavy duty discs, calipers and pads keep the brake performance and reduces the fading for all time safe deceleration despite the increased weight of the armored vehicle.

Tire and Rims

Special tires with a higher loadindex, up to 1550kg, with on- and offroad capabilities are mounted on the TRASCO LX 570.

Rims with a proofen payload including a runflat system for emergency driving with a puncture, up to a range of 15km with 50km/h, are standard.

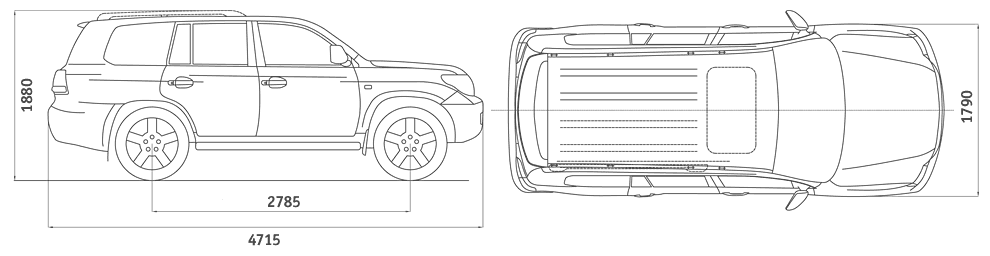

Dimension
