Based on BMW 5 Series

The development and testing phase for the armoring and the upgraded suspension for the new BMW 5 has been completed successfully. Many vehicles are already delivered from our facility in Bremen.

The new TRASCO models based on BMW 5 series are offered in different armoring levels (B4 A-Kip, Level 7, Level 9).

Armoring cage with A, B and C pillars and overlaps integrated in passenger cell

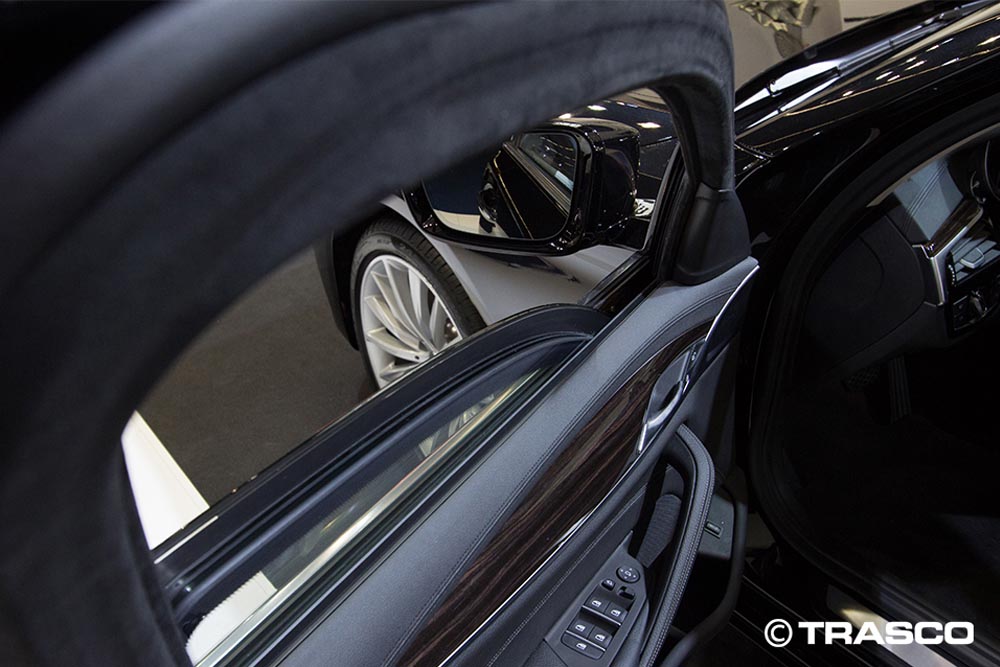

Laminated safety glass produced by European glass manufacturers

Automatic soft-closing on all doors

Armored trunk box for electronics, battery or other options

Self-sealing fuel tank

Underbody protection against 2x DM51 grenades

Heavy duty wheels

Reinforced suspension

Reinforced door arresters and door hinges

Reinforced bumper front and rear as option

Armoring

Threat	Testlevel according to VPAM APR 2006	Classification by PM 2007 (PM) BRV 2009 (VR)	Stanag 4569 AEP 55 (level)	Comparable to* DIN EN 1063 (BR), DIN EN 1522/23 (FB), BRV 1999 (VR)	Type of Weapon	Calibre	Type of bullet	Testcondition
Threat	Testlevel according to VPAM APR 2006	Classification by PM 2007 (PM) BRV 2009 (VR)	Stanag 4569 AEP 55 (level)		Type of Weapon	Calibre	Type of bullet	Standoff (m)	Standard Hit Spacing
	4	PM 4 VR 4		BR 4 FB 4 VR 4	357 S/W	.357 Magnum	FJ(1)/CB/SC	10 +/- 0.5	3 shots on the vertices of a triangle @ 120 +/- 10mm
	4	PM 4 VR 4		BR 4 FB 4 VR 4	44 S/W	.44 Magnum	FJ(2)/FN/SC	10 +/- 0.5	3 shots on the vertices of a triangle @ 120 +/- 10mm
	7	PM 7 VR 7	Level 1	BR 5 FB 5 VR 5	M16A2/Famas-G2	5.56 x 45mm	FJ(2)/PB/SCP(1)	10 +/- 0.5	3 shots on the vertices of a triangle @ 120 +/- 10mm
	7	PM 7 VR 7		BR 6 FB 6 VR 6	M80 Ball (M60/M14/FAL-FN)	7.62 x 51mm	FJ(1)/PB/SC
				( B6+ not classified)	M16A1/Famas-G1 (M193)	5.56 x 45mm	FJ(2)/PB/SC
	9	PM 9 VR 9		BR 7 FB 7 VR 7	M61-AP (M60/M14/FAL-FN)	7.62 x 51mm	FJ(2)/PB/HC(1)	10 +/- 0.5	3 shots on the vertices of a triangle @ 120 +/- 10mm

Suspension

Brakes

Special manufactured heavy duty discs, calipers and pads are being used due to the increased weight of the armored vehicle, which keep the brake performance and reduce fading for all time safety braking.

Tire and Rims

Due to the weight of the armored sedan or limousine, the vehicle is equipped with special tires with an increased load index.

Rims with special unique design and proven payload include the run flat system for emergency driving with a puncture up to a range of 50 km with 50km/h speed.
