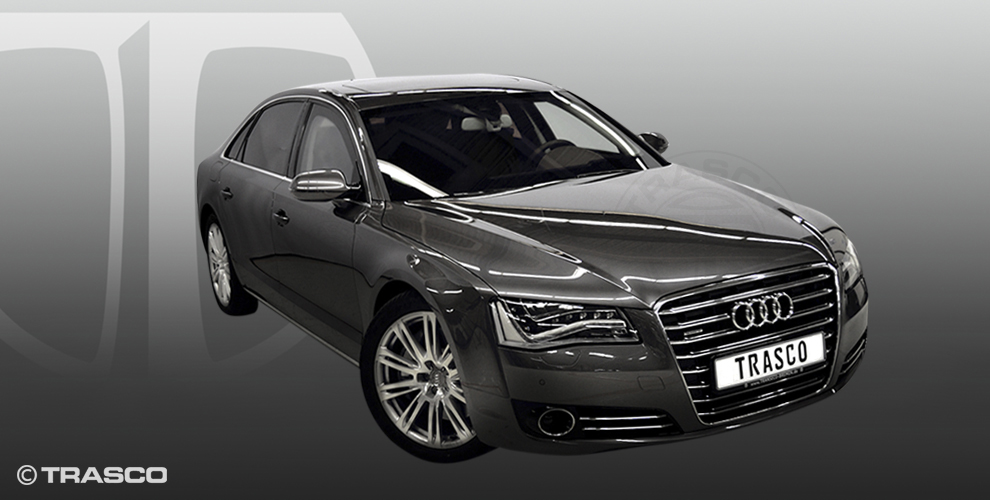

AUDI A8 L

The new AUDI A8L can be armored by TRASCO according to Anti-Kidnapping Level 4.

Luxury AUDI vehicles are being armored in Bremen since an official OEM-Cooperation was agreed in 1989 with AUDI AG. In the following years the armored AUDI A8L (D2) was produced by our company for AUDI AG unitl Audi decided to set up an inhouse armoring programm in Ingolstadt. Until today

AUDI AG is being supplied with spare parts for the vehicles which were armored during the period of the cooperation and which are still in usage in various parts of the world.

In more than 25 years of our companies history over 100 AUDI A8L sedans were armored by TRASCO.

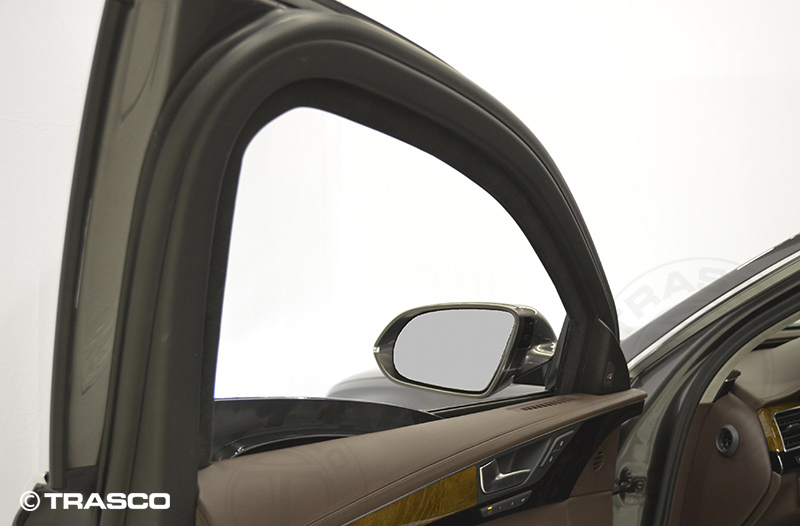

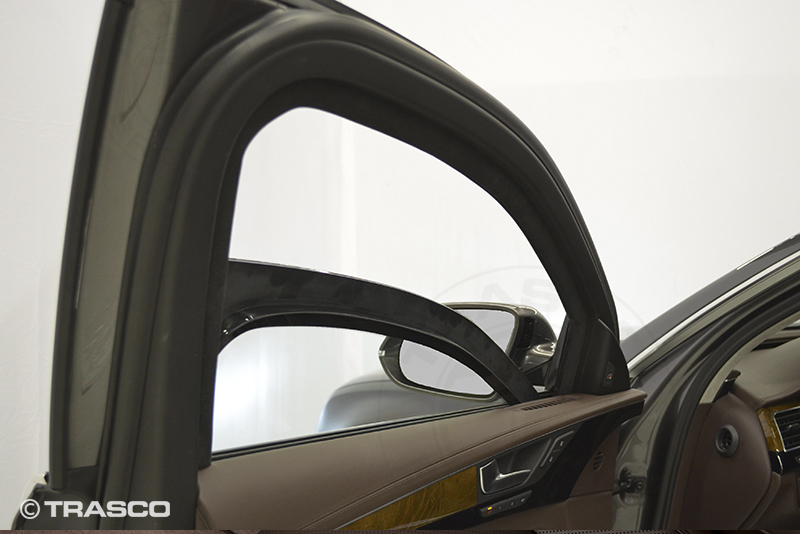

Armoring cage with A, B and C pillars and overlaps integrated in passenger cell

Laminated safety glass produced by European glass manufacturers

Automatic soft-closing on all doors

Armored trunk box for electronics, battery or other options

Self-sealing fuel tank

Underbody protection against 2x DM51 grenades

Heavy duty wheels

Reinforced suspension

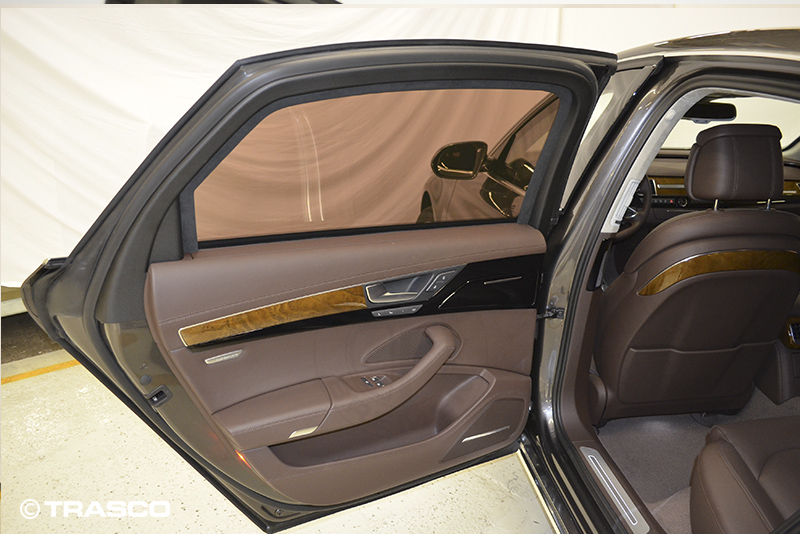

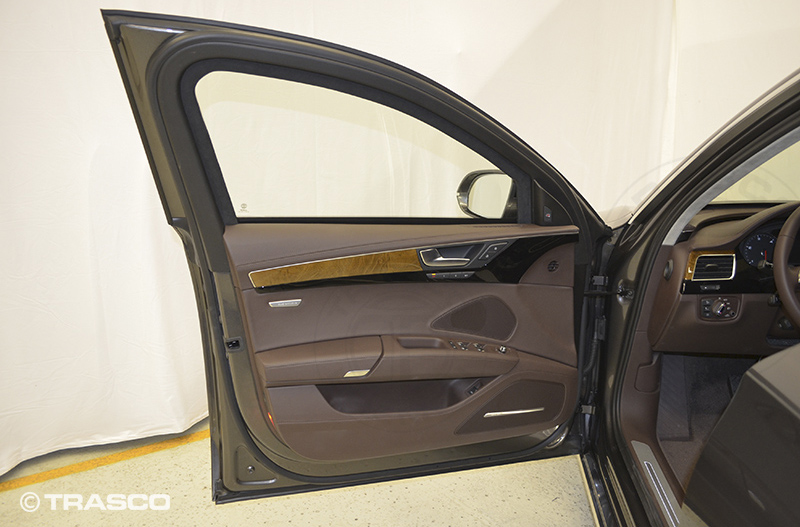

Reinforced door arresters and door hinges

Reinforced bumper front and rear as option

Armoring

Threat	Testlevel according to VPAM APR 2006	Classification by PM 2007 (PM) BRV 2009 (VR)	Stanag 4569 AEP 55 (level)	Comparable to* DIN EN 1063 (BR), DIN EN 1522/23 (FB), BRV 1999 (VR)	Type of Weapon	Calibre	Type of bullet	Testcondition
Threat	Testlevel according to VPAM APR 2006	Classification by PM 2007 (PM) BRV 2009 (VR)	Stanag 4569 AEP 55 (level)		Type of Weapon	Calibre	Type of bullet	Standoff (m)	Standard Hit Spacing
	4	PM 4 VR 4		BR 4 FB 4 VR 4	357 S/W	.357 Magnum	FJ(1)/CB/SC	10 +/- 0.5	3 shots on the vertices of a triangle @ 120 +/- 10mm
	4	PM 4 VR 4		BR 4 FB 4 VR 4	44 S/W	.44 Magnum	FJ(2)/FN/SC	10 +/- 0.5	3 shots on the vertices of a triangle @ 120 +/- 10mm
	7	PM 7 VR 7	Level 1	BR 5 FB 5 VR 5	M16A2/Famas-G2	5.56 x 45mm	FJ(2)/PB/SCP(1)	10 +/- 0.5	3 shots on the vertices of a triangle @ 120 +/- 10mm
	7	PM 7 VR 7		BR 6 FB 6 VR 6	M80 Ball (M60/M14/FAL-FN)	7.62 x 51mm	FJ(1)/PB/SC
				( B6+ not classified)	M16A1/Famas-G1 (M193)	5.56 x 45mm	FJ(2)/PB/SC
	9	PM 9 VR 9		BR 7 FB 7 VR 7	M61-AP (M60/M14/FAL-FN)	7.62 x 51mm	FJ(2)/PB/HC(1)	10 +/- 0.5	3 shots on the vertices of a triangle @ 120 +/- 10mm

Brakes

Special manufactured heavy duty discs, calipers and pads are being used due to the increased weight of the armored vehicle, which keep the brake performance and reduce fading for all time safety braking.

Tire and Rims

Due to the weight of the armored sedan or limousine, the vehicle is equipped with special tires with an increased load index.

Rims with special unique design and proven payload include the run flat system for emergency driving with a puncture up to a range of 50 km with 50km/h speed.
